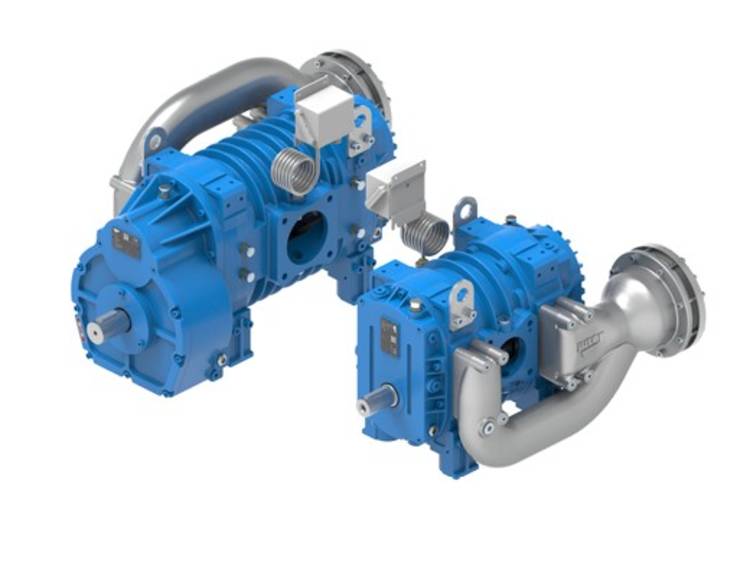

The Jurop Helix 220, 300, 1500, and 2000 model series tri-lobe blowers ares specifically designed for use in vacuum plants that must convey gas free from polluting substances, oil, or water.
The specific and accurate lobes profiles grant high volumetric efficiency and high flow rates combined with minimized dimensions and vacuum rates that can reach 93%.
220 series SPECIFICATIONS
CFM: 755
Rotation Speed: 1400-2400
Vacuum: 93% (27.8 Hg)
Max Pressure: 29
Weight: 460 lbs
300 series SPECIFICATIONS
CFM: 1089
Rotation Speed: 3400
Vacuum: 93% (27.8 Hg)
Max Pressure: 29 PSI
Weight: 460 lbs
1500 series SPECIFICATIONS
CFM: 5000
Rotation Speed: 2500
Vacuum: 93% (27.8 Hg)
Max Pressure: 29 PSI
Weight: 2000 lbs
2000 series SPECIFICATIONS
CFM: 5000
Rotation Speed: 2500
Vacuum: 93% (27.8 Hg)
Max Pressure: 29 PSI
Weight: 2700 lbs
