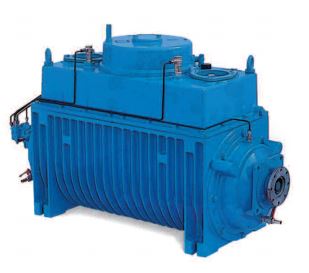

Moro M9 PM200 PM2000 PM3000 HM46 Vacuum Pumps

Item #: STORM-PM200-CCW
Price: $13,050.79
    The product is in stock Availability: In Stock
    Usually ships In 1-2 Business Days


    Update price
    Moro Kaiser

    About This Item

    • Pumps: M9, PM200, PM2000, PM3000, HM46
    • NOTE: PM200 is the same footprint as the M9 (factory order) and is available in the U.S. It has an extra vane and more free air.
    • Liquid cooled
    • Great for heavy duty, continuous use applications
    • Low rotating speed for longer pump life
    • Incl' cooling circuit to maximize heat dissipation
    •  Built-in water recirculation pump
    • Special inspection port for visual wear checks
    • Integrated non-return and four-way valves
    • Air intake and discharge ports designed for low noise and heat

    Moro M9 (547 cfm), PM200 (678 cfm), PM2000 (833 cfm), PM3000 (1001 cfm), and HM46 (1642 cfm) liquid cooled vacuum pumps are recommended for heavy duty, continuous use applications.

    NOTE: the PM200 is the same footprint as the M9 (factory order) and is available in the U.S. It has an extra vane and more free air.

    M9 Pump

    • CFM: 547
    • PSI: 14.5
    • RPM: 1000
    • Weight: 970 lbs
    • Flange: 4"
    • Oil Tank Capacity: 1.45 Gallons
    • Suggested Tank Size 3000-6000 Gallons
    • Max. Vacuum: 28 InHg
    • Continuous Duty Vacuum: 24 in. Hg
    • Shaft Size: 1 3/8"

    PM200 Pump

    • CFM: 678
    • PSI: 14.5
    • RPM: 1200
    • Weight: 970 lbs
    • Flange: 4"
    • Oil Tank Capacity: 1.32 Gallons
    • Suggested Tank Size 3000-4000 Gallons
    • Max. Vacuum: 28 InHg
    • Continuous Duty Vacuum: 24 in. Hg
    • Shaft Size: 1 3/8"

    PM2000 Pump

    • CFM: 833
    • PSI: 29
    • RPM: 1200
    • Weight: 1,034 lbs
    • Flange: 4"
    • Oil Tank Capacity: 3.17 Gallons
    • Suggested Tank Size 3000-4000 Gallons
    • Max. Vacuum: 28 InHg
    • Continuous Duty Vacuum: 24 in. Hg
    • Shaft Size: 1 3/8"

    PM3000 Pump

    • CFM: 1001
    • PSI: 29
    • RPM: 1200
    • Weight: 1,177 lbs
    • Flange: 4"
    • Oil Tank Capacity: 3.17 Gallons
    • Suggested Tank Size 3000-6000 Gallons
    • Max. Vacuum: 28 InHg
    • Continuous Duty Vacuum: 24 in. Hg
    • Shaft Size: 1 3/8"

    HM46 Pump

    • CFM: 1642
    • PSI: 14.5
    • RPM: 950-1,000
    • Weight: 1,587 lbs
    • Flange: 6"
    • Oil Tank Capacity: 2.9 Gallons
    • Suggested Tank Size 3000-6000 Gallons
    • Max. Vacuum: 28.8 InHg
    • Continuous Duty Vacuum: 24 in. Hg
    • Shaft Size: 1 3/8"
